CYT3001BM 三段高壓LED線性恒流驅(qū)動芯片
CYT3001BM is a three-segment LED linear constant current control chip with high power factor. It integrates 700V high voltage MOSFET, and adopts unique and innovative device process technology, with superior resistance to avalanche breakdown and surge. It can pass 650V lightning surge test when no protection device in the periphery, and built-in overtemperature protection to improve system application reliability.The peripheral can accurately set the output LED current through the external resistor, and it can reduce THD by optimizing the voltage reference when the segment is turned on. CYT3001BM integrates the input line voltage compensation. When the input line voltage is too high, CYT3001BM will reduce the output current according to the external compensation resistor to ensure that the input power does not change with the line voltage.
It internally optimizes the wiring and facilitates routing when multiple chips are connected in parallel, saving jumper resistance.

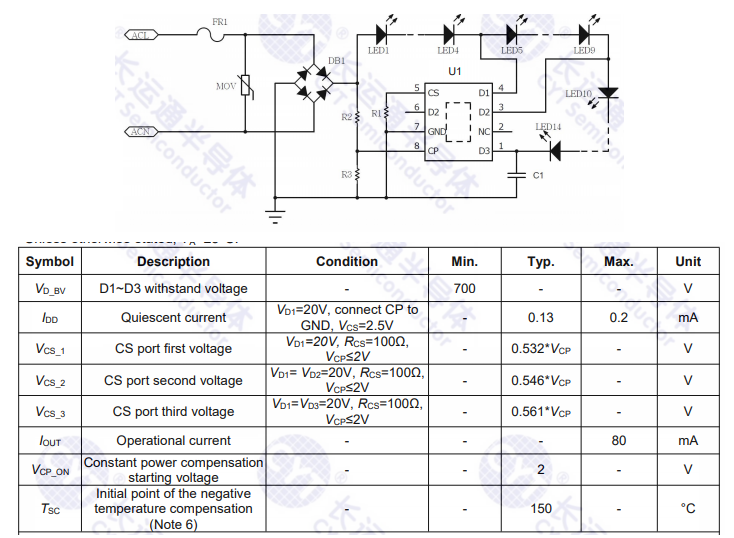

It is mainly used in the field of LED lighting.The system structure is simple, the peripheral components are few, the PCB traces are simple, and the solution cost is low.
Input voltage: 120Vac/220Vac
Output current deviation between <±5%
700V High-voltage MOS, can pass 650V lightning strike without any protection device Multi-chip parallel application without OR jumper resistors
Multi-lamp parallel without oscillation
PF>0.95, THD<20%
Meet the requirements of
IEC61000-3-2(Class C) fractional harmonics certification
No magnetic components for EMI applications
3-Segment LED light string can be flexibly configured
Over temperature adjustment function
Constant power regulation function
Package: ESOP8
